Product Description

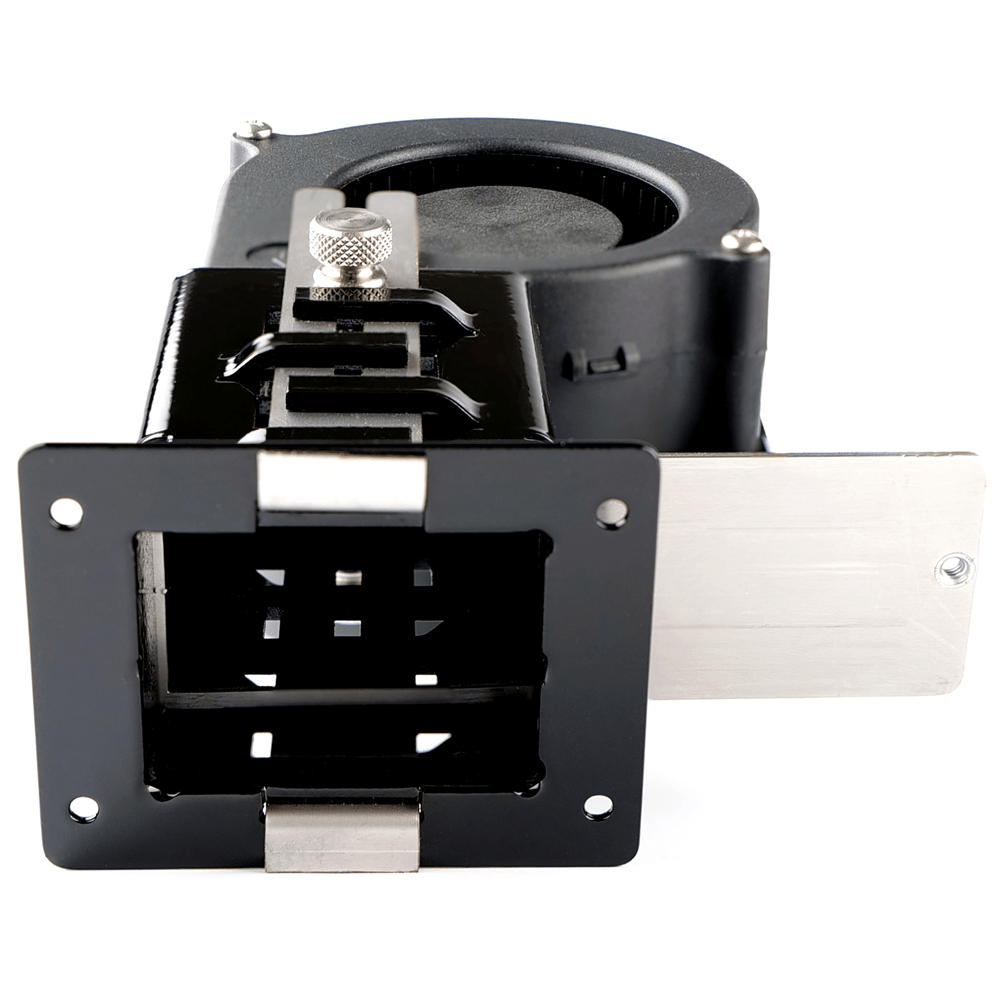

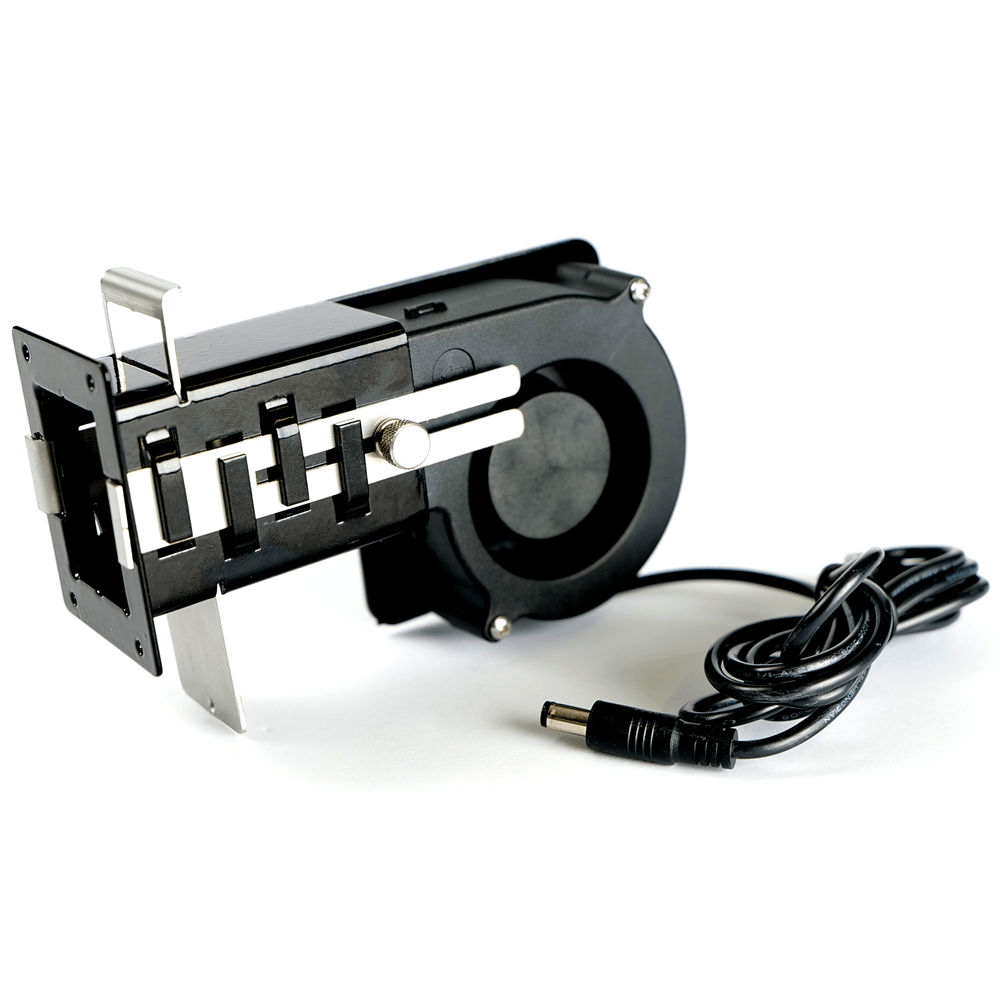

Powerful blower that can be installed on many smokers using included adapter plates. Built-in sliding damper to fine tune airflow.
Small/Medium Adapter Plate: 2.75 x 1.97″ (70 x 50mm)
Large/XL Adapter Plate: 3.43 x 3.03″ (87 x 77mm)
Specifications:
- Variable Speed, powered by FireBoard’s internal battery **
- Power source: 12 VDC, 0.68A, 8W (not included)
- Cable length: 4.5 ft (1.4 m).
- Power connector: 2.5 mm barrel plug
- Blower maximum flow rating: 20 CFM
- Blower opening: 1.2 x 1.6″ (30 x 40 mm).
- Flange outer dimension: 1.95 x 2.45″ (49 x 62 mm).
- Flange mounting hole distance: 1.32 x 2.05″ 34 x 52 mm, hole size, 3 mm in diameter.
Note: Blower does NOT include Drive Fan Control Cable, which is needed to use a fan with the FireBoard 2 or FBX11. FireBoard 2 Drive/Pro models will power fan directly, no Drive Fan Control Cable necessary.
** For maximum fan speed, external power is required.
